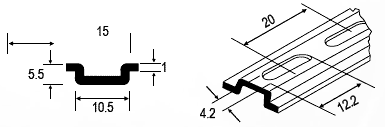

DIN RAIL / MOUNTING RAIL
�G� PROFILE TO BS 5825:1975
(EN 50 035, DIN 46277-1) |
|
 |
 |
|
DIN RAIL /
MCB / MOUNTING RAIL
STANDARD TOP HAT PROFILE TO BS 5584:1978 |
|
 |
 |
|

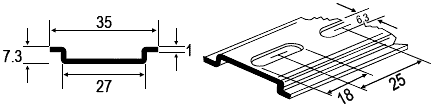

DEEP TOP HAT PROFILE TO
BS 5584:1978 (EN 50 022, DIN 46277-3) 1 M / 2 M / CUT TO SIZE |
|
 |
 |
|

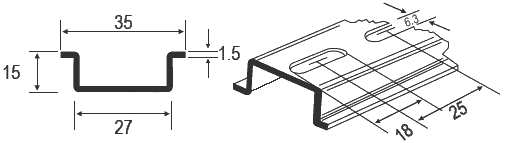

MINIATURE
RAIL TO BS 6273:1982 (EN 50 045, DIN 46277-2) 1 M / 2 M |
|
 |
 |
|
Material : Cold Rolled Steel
Finished : Zinc Plated & Passivated 'G' Profile, Standard DIN/ MCB Rail & Deep MCB Rails are manufactured in 1 M, 2 M & to customers cut length sizes. Miniature rails are manufactured in 1 M Length All Rails are manufactured Slotted / unslotted as per customer's requirement |
|
|
|
|
