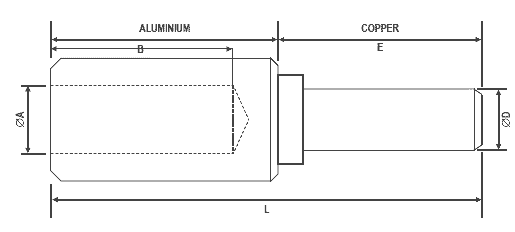

BIMETALLIC PIN CONNECTOR




CONDUCTIVITY :
Aluminium 61.8% IACS (MIN)
Copper 99.7% IACS
Aluminium barrel are chemically treated to reduce contact resistance and corrosion and are filled electrically conductive corrosion inhabitant with a jointing compound and capped.

CONDUCTIVE MATERIAL :
Aluminium Barrel : 99.6%
Copper Palm : 99.95%
Final Metal State : Fully Annealed, Including Joint.
Joining method friction welding, welding area more than nominal conductor area.
Finish natural.

NOTE:

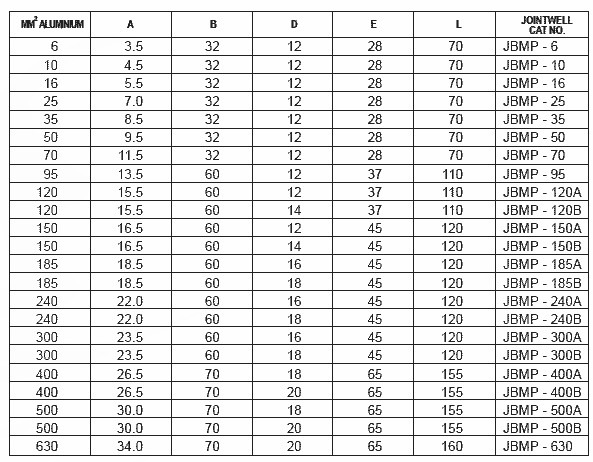

1) Combinations of bi-metallic compression joints are designed on the basis of current Carrying capacity of
    individual cables.
2) In case additional combinations are required same may will be provided against specific request.
3) Shape size and dimensions are subject to change without notice.
